14  MI-CDM Basic

14.1 Person to Image feature

Note

Q: Explaining how the link was established from Person → Visit_Occurence → Procedure_occurence → Image_occurence → Image_feature. Also, include the PK and FK of each table with example.

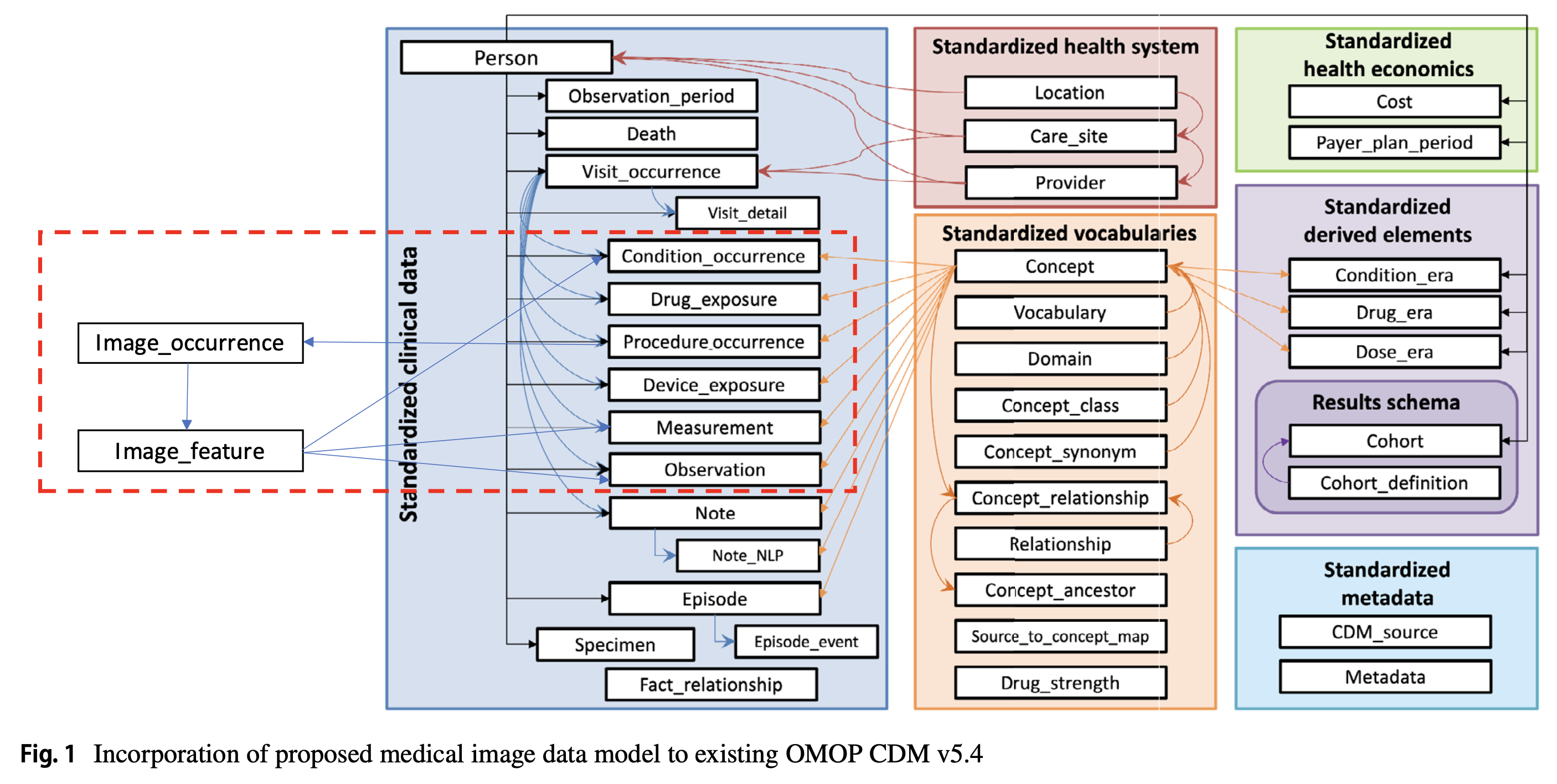

Figure 14.1: IM-CDM Overview

The path is patient-centric and flows like this:

Person → Visit_occurrence → Procedure_occurrence → Image_occurrence → Image_feature

Each step uses primary keys (PK) and foreign keys (FK) to maintain referential integrity.

14.1.1 Person Table

  • Purpose: Identifies the patient.

  • Key fields:

    • person_id (PK) = unique identifier for each patient.

Example row:

person_id gender birth_date
P001 Male 1965-03-12

14.1.2 Visit_occurrence Table

  • Purpose: Represents a healthcare encounter (e.g., outpatient visit, ER admission).

  • Keys:

    • visit_occurrence_id (PK)
    • person_id (FK → Person)

Example row:

visit_occurrence_id person_id visit_date visit_type
V1001 P001 2024-01-10 Outpatient visit

14.1.3 Procedure_occurrence Table

  • Purpose: Records that a procedure was performed (e.g., CT Chest).

  • Keys:

    • procedure_occurrence_id (PK)
    • person_id (FK → Person)
    • visit_occurrence_id (FK → Visit_occurrence)

Example row:

procedure_occurrence_id person_id visit_occurrence_id procedure_concept_id procedure_date
PR5001 P001 V1001 36715236 (CT chest, SNOMED) 2024-01-10

14.1.4 Image_occurrence Table (MI-CDM extension)

  • Purpose: Links procedure to the actual DICOM study/series.

  • Keys:

    • image_occurrence_id (PK)
    • person_id (FK → Person)
    • procedure_occurrence_id (FK → Procedure_occurrence)
    • visit_occurrence_id (FK → Visit_occurrence)

Example row:

image_occurrence_id person_id procedure_occurrence_id visit_occurrence_id study_UID series_UID modality_concept_id anatomic_site_concept_id
IMG101 P001 PR5001 V1001 1.2.840… 1.3.6.1.4… CT Chest

14.1.5 Image_feature Table (MI-CDM extension)

  • Purpose: Captures features/findings derived from the images.

  • Keys:

    • image_feature_id (PK)
    • person_id (FK → Person)
    • image_occurrence_id (FK → Image_occurrence)
    • image_feature_event_id (FK → Measurement/Observation table)

Example row:

image_feature_id person_id image_occurrence_id image_feature_concept_id image_finding_concept_id value alg_system alg_datetime
F301 P001 IMG101 LOINC: “Longest diameter of pulmonary nodule” RadLex: “Pulmonary nodule” 8 mm AI-LungNodule-v1 2024-01-10 12:00

14.1.6 Putting It All Together

  • Person: P001 is the patient.
  • Visit_occurrence: P001 visits outpatient clinic on Jan 10, 2024.
  • Procedure_occurrence: During visit, a CT Chest (SNOMED: 36715236) is ordered and performed.
  • Image_occurrence: That procedure links to the actual DICOM study (UIDs, modality=CT, site=Chest).
  • Image_feature: From that study, an AI algorithm extracts a pulmonary nodule feature (8 mm, solid).

👉 This chain ensures full traceability: We can follow the patient from clinical encounter → imaging procedure → DICOM study → extracted features.

14.2 Image feature to Clinical Table

Note

Q: Show me how the Image_feature can be linked to the Condition_occurence, Measurement, and Observation table with example. Again, show PK/FK.

In the Image_feature table, two special fields are used for linkage:

  • image_feature_event_field_concept_id → tells which clinical table the feature lives in (e.g., Measurement, Observation, Condition_occurrence).
  • image_feature_event_id → points to the primary key (PK) in that clinical table.

So, Image_feature acts like a bridge table that connects features to existing OMOP entities.

14.2.4 Big Picture

  • Measurements: numeric imaging biomarkers (diameter, density, attenuation).
  • Observations: categorical imaging descriptors (solid, spiculated, lobulated).
  • Condition_occurrences: imaging-based diagnoses or classifications (lung cancer, Lung-RADS).

The Image_feature table ties them all together by recording which DICOM study/series they came from, what algorithm or report created them, and where in the OMOP model the actual values live.

14.3 Concept ID

Note

Q: Explain what the concept ID (*_concept_id) is

Great question — concept IDs are central to how the OMOP CDM (and now the MI-CDM extension) work.

14.3.1 What is a *_concept_id?

  • In OMOP CDM, every clinical concept (diagnosis, procedure, measurement, drug, imaging modality, anatomical site, etc.) is mapped to a unique integer identifier called a concept_id.
  • These IDs live in the Concept table of OMOP.
  • Instead of storing free-text or raw codes (like ICD-10, LOINC, SNOMED, DICOM tags, RadLex terms), OMOP standardizes them into a common vocabulary system.

14.3.2 Why use concept_id?

  1. Standardization

    • Different hospitals may record the same concept differently (ICD-10 vs SNOMED vs RadLex).
    • OMOP maps them all to the same concept_id -> ensuring interoperability.

  2. Computable queries

    • You can query across institutions without worrying about local coding differences.
    • Example: “CT Chest” might be CPT 71250 in the US, but in Korea another code. Both map to the same OMOP concept_id.

  3. Relationships & Hierarchies

    • concept_id connects to concept_relationship and concept_ancestor tables -> allowing you to query hierarchies (e.g., “find all imaging procedures that are CT scans of the chest”).

14.3.3 Where do you see *_concept_id?

In the MI-CDM tables:

14.3.3.1 Image_occurrence

  • modality_concept_id -> DICOM modality (e.g., CT, MR, US).
  • anatomic_site_concept_id -> body part imaged (e.g., Chest, Liver).

14.3.3.2 Image_feature

  • image_feature_concept_id -> the specific feature (e.g., “Longest diameter of pulmonary nodule,” “Ground glass opacity”).
  • image_feature_type_concept_id -> provenance (e.g., DICOM SR, AI algorithm, NLP extraction).
  • image_finding_concept_id -> grouping (e.g., “Pulmonary nodule”).
  • anatomic_site_concept_id -> location of the feature (e.g., “Left lower lobe”).

14.3.4 Example with Real IDs (simplified)

Suppose patient P001 has a CT chest with a lung nodule:

  • Procedure_occurrence

    • procedure_concept_id = 36715236 -> “CT of chest”

  • Image_occurrence

    • modality_concept_id = 44814653 -> “CT”
    • anatomic_site_concept_id = 4144262 -> “Chest”

  • Image_feature

    • image_feature_concept_id = 3026910 -> “Longest diameter of pulmonary nodule (LOINC)”
    • image_feature_type_concept_id = 45884084 -> “Extracted by algorithm”
    • image_finding_concept_id = 45756815 -> “Pulmonary nodule (RadLex)”
    • Value = 8 mm

Key point: The concept_id makes sure that no matter the coding system (LOINC, SNOMED, RadLex, DICOM), the feature or event is normalized into a unified vocabulary for analytics.
